Mixing Stock 3 Legs

The Stock 3 Legs are BLUE, RED, and YELLOW.

Mix these 3 colors will give you the following results in angles. These angles were measured with the legs being equally spaced in 1/3rd increments around the base.  Even more angle results will happen by changing the 1/3rd increments to an infinite amount of varieties within 360 degrees.  Also you can compound those angles by rotating and swiveling the angles of the lower rubber feet and using the steel ground stakes to set the angles of the rubber feet.  So for simplicity, below are the angles achieved by simply using the 1/3rd spacing, each leg set at 120 degrees from each other, and using the stock 3 legs.


Vertical 90 degrees - Pair the leg colors with the base.

  • Blue Leg on Blue
  • Red Leg on Red
  • Yellow Leg on Yellow
IMG 7597

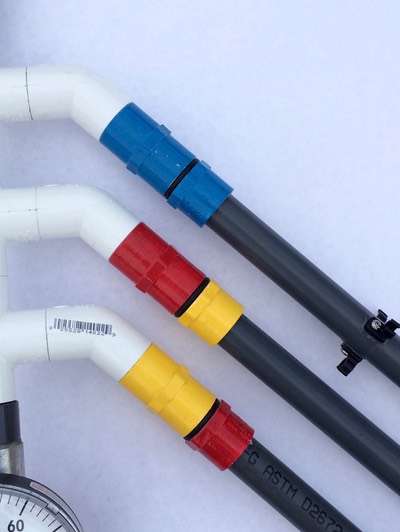

79 Degrees

  • Blue Leg on Blue
  • Red Leg on Yellow
  • Yellow Leg on Red
IMG 7598

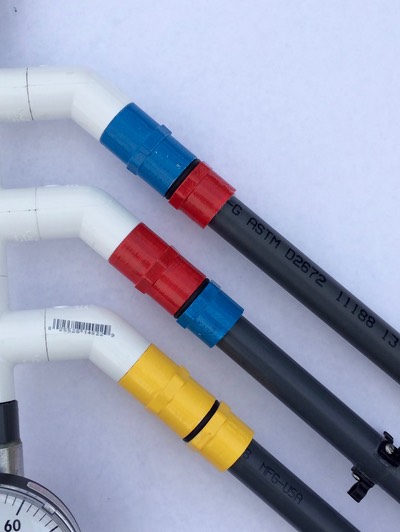

79 Degrees (alternative)

  • Blue Leg on Red
  • Red Leg on Blue
  • Yellow Leg on Yellow
IMG 7599

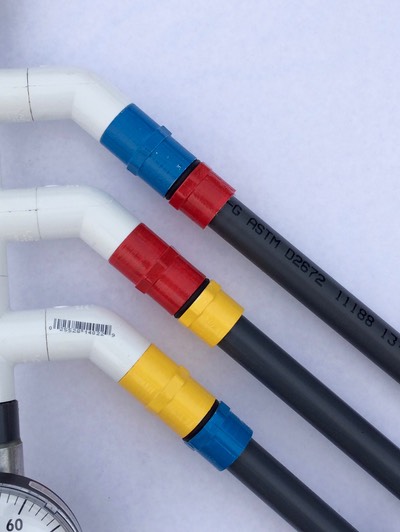

74 Degrees

  • Blue Leg on Yellow
  • Red Leg on Blue
  • Yellow Leg on Red
IMG 7600

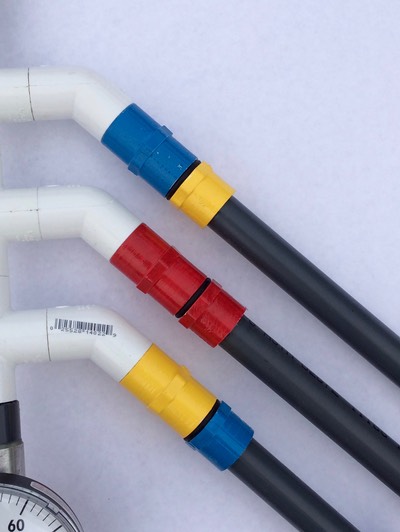

67 Degrees

  • Blue Leg on Yellow
  • Red Leg on Red
  • Yellow Leg on Blue
IMG 7601

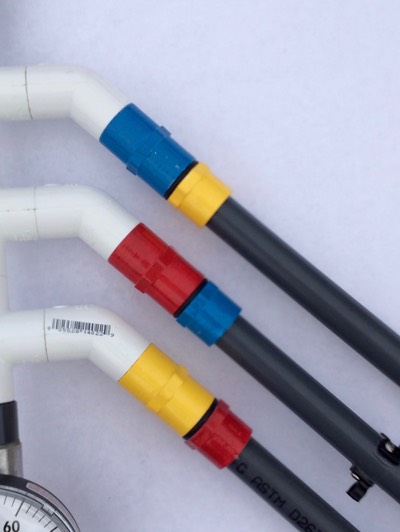

67 Degrees (alternative)

  • Blue Leg on Red
  • Red Leg on Yellow
  • Yellow Leg on Blue
IMG 7602

Next page a 4th Leg (green) is introduced to add some exciting variety to angles.
